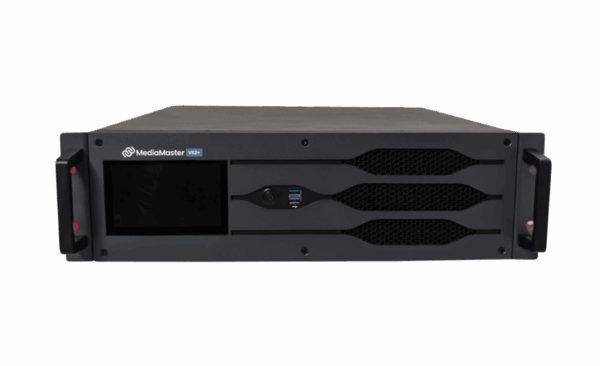

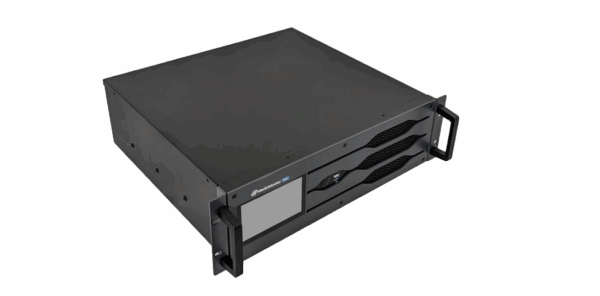

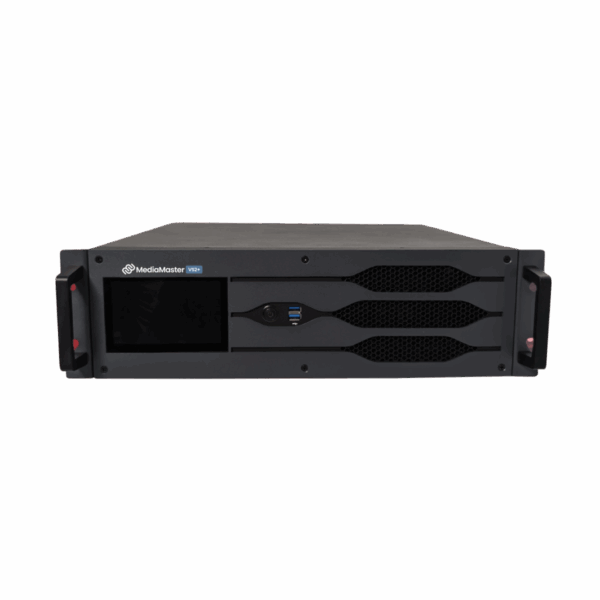

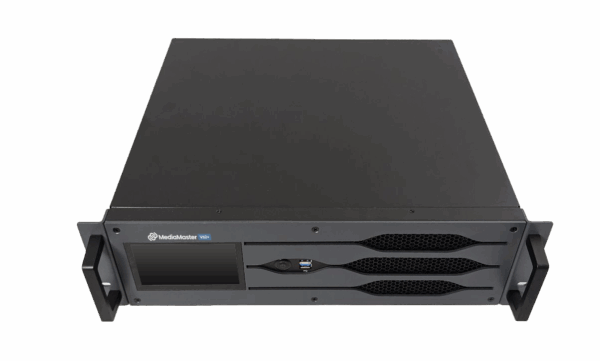

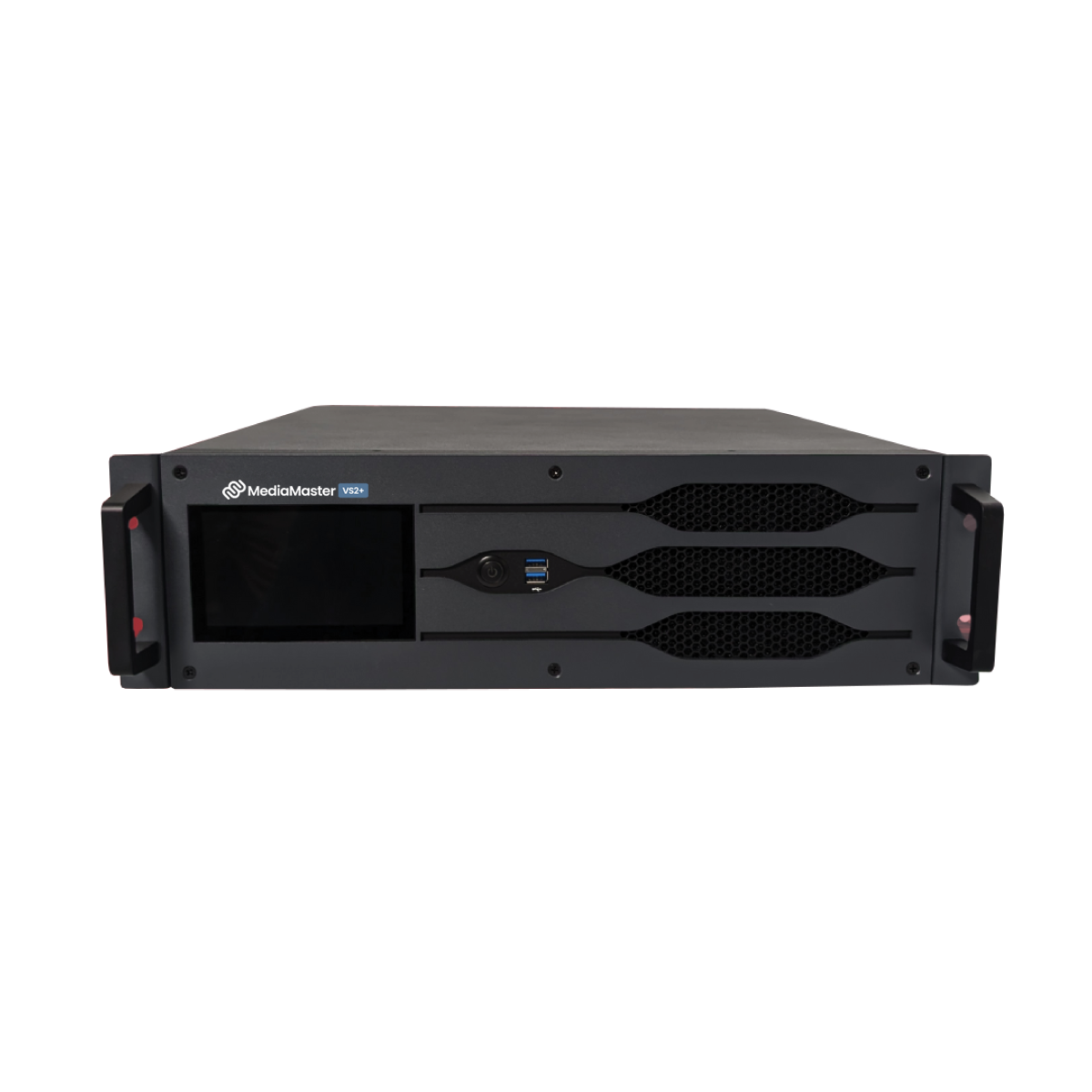

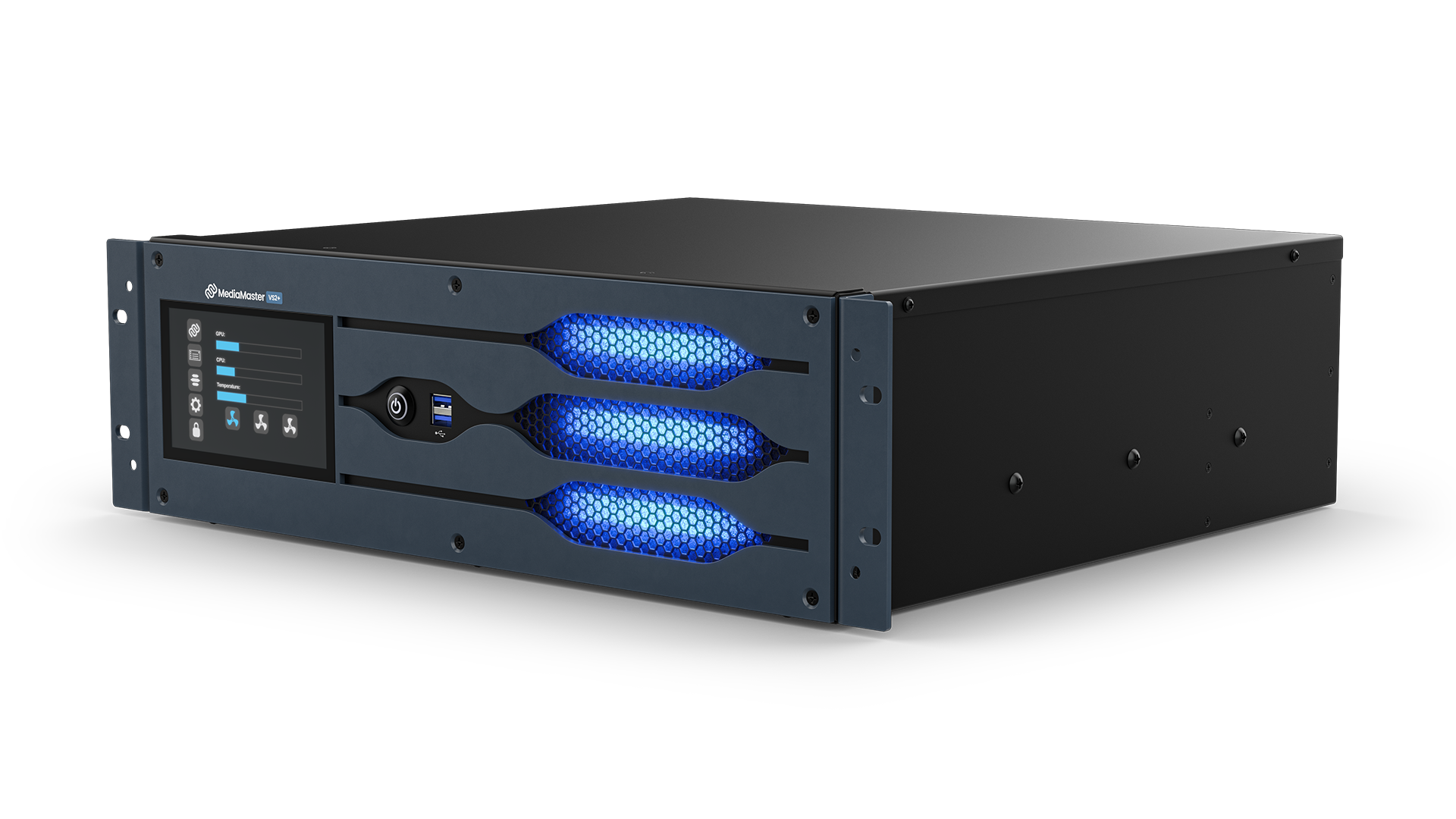

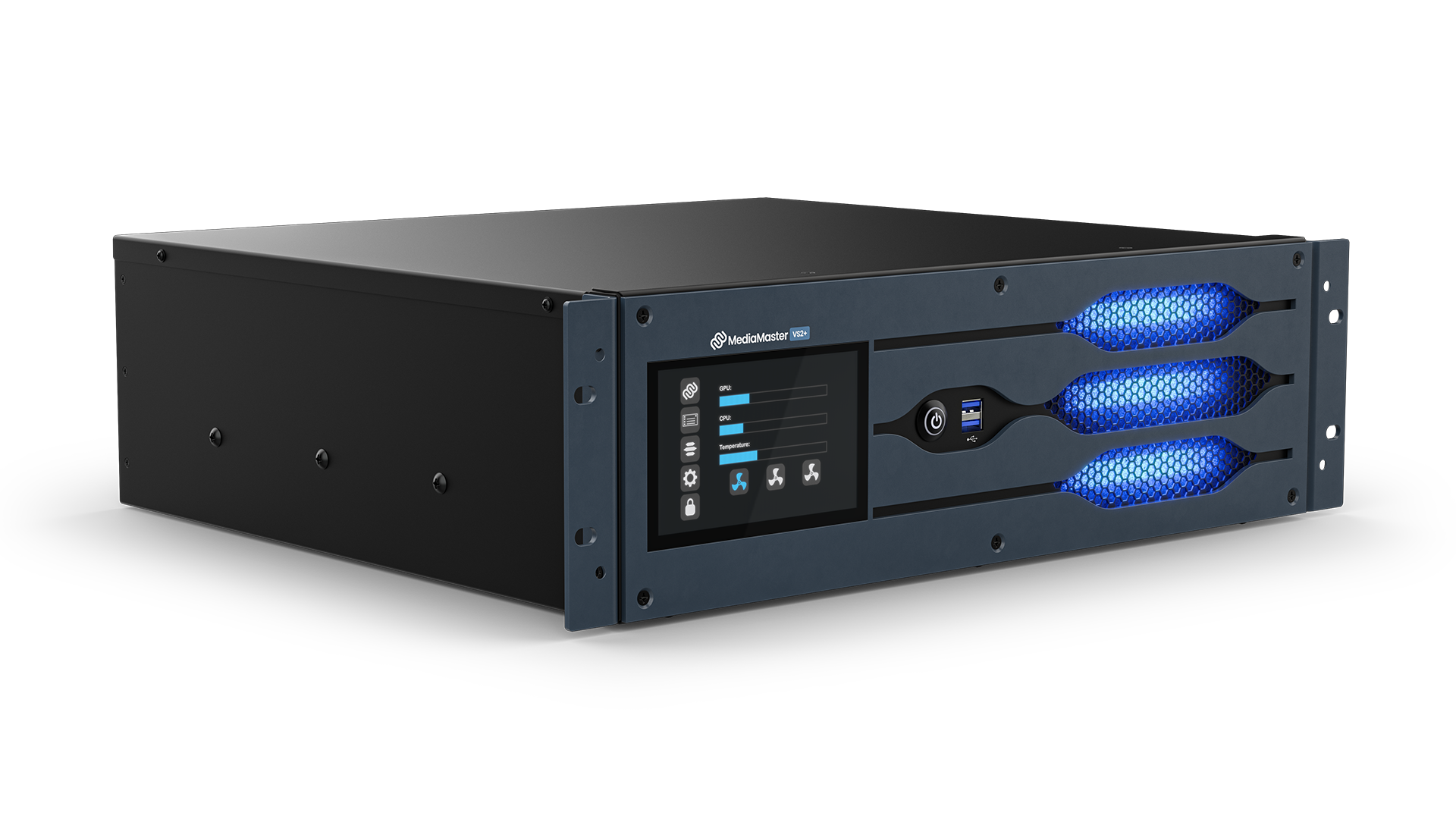

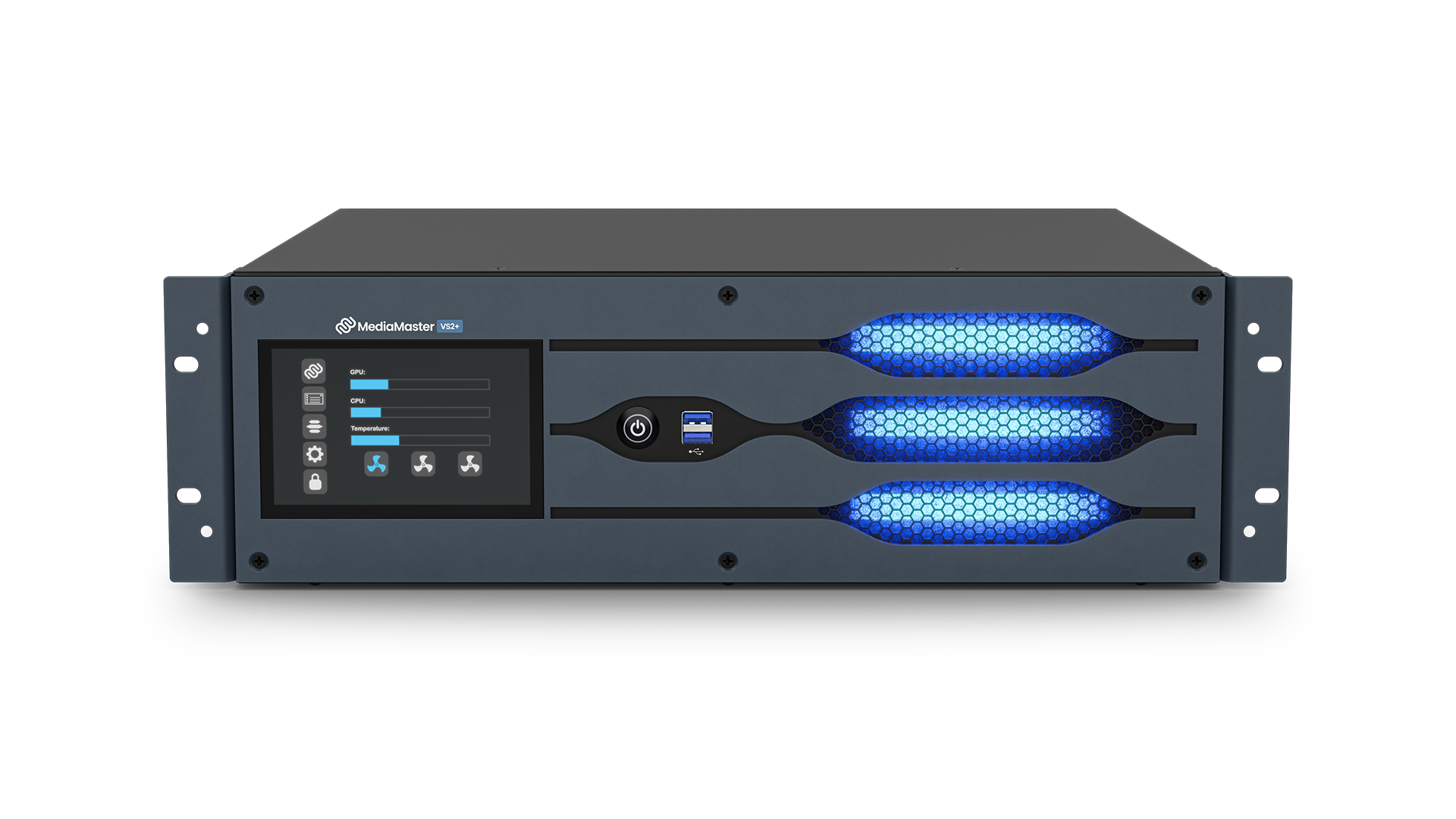

MediaMaster VS2+

Built for the demands of rental houses, this system is strong, reliable, and effortless to operate. Featuring 2 x 4K outputs powered by MediaMaster Pro, it delivers exceptional performance with uncompromising dependability.

Overview:

  • 2 x 4K Video Output
  • MediaMaster Pro Software
  • Includes LED Mapper & Video Mapper
  • NDI Support

Industrial Strength, Blistering Performance

Built to handle the toughest rental and live production environments, this system combines rugged design with a lightning-fast graphics engine for flawless playback every time. Powered by MediaMaster Pro, it delivers up to 48 playback layers, support for multiple surfaces and outputs, and advanced tools like LED Mapper, Video Mapper, Soft Edge & Geometric Correction, and full NDI®5 / CITP / MSEX compatibility.

Under the hood, an Intel i5 13500 processor with 20 threads, 16GB DDR4 RAM, and NVIDIA RTX A2000 12GB graphics ensure smooth, responsive performance, while dual 4K outputs guarantee pristine visuals. Connectivity is extensive, with 2.5Gb Ethernet, multiple USB 3.0/USB-C ports, and optional 2x/4x SDI or HDMI inputs. A 1TB SSD system drive plus factory restore options provide fast storage and reliability for demanding workflows.

Strong, reliable, and simple to use, this system is the perfect choice for rental houses and touring productions needing maximum performance in a compact, road-ready package.

Specifications

Hardware Specifications:

  • Processor: Intel i5, 13500
  • Threads (Cores): 20 (14)
  • RAM: 16gb (2x 8GB) Crucial
  • RAM Type: DDR4 3200 MHz SODIMM
  • Graphics Card: NVIDIA RTX A2000 12GB NVIDIA T400 4GB
  • Power Input: powerCON TRUE1 110 to 240 VAC
  • Max Power Consumption (mains): TBC
  • System Drive: SSD 1 TB
  • Storage Drive: Uses System Drive
  • System Restore Drive: USB 128 Gb

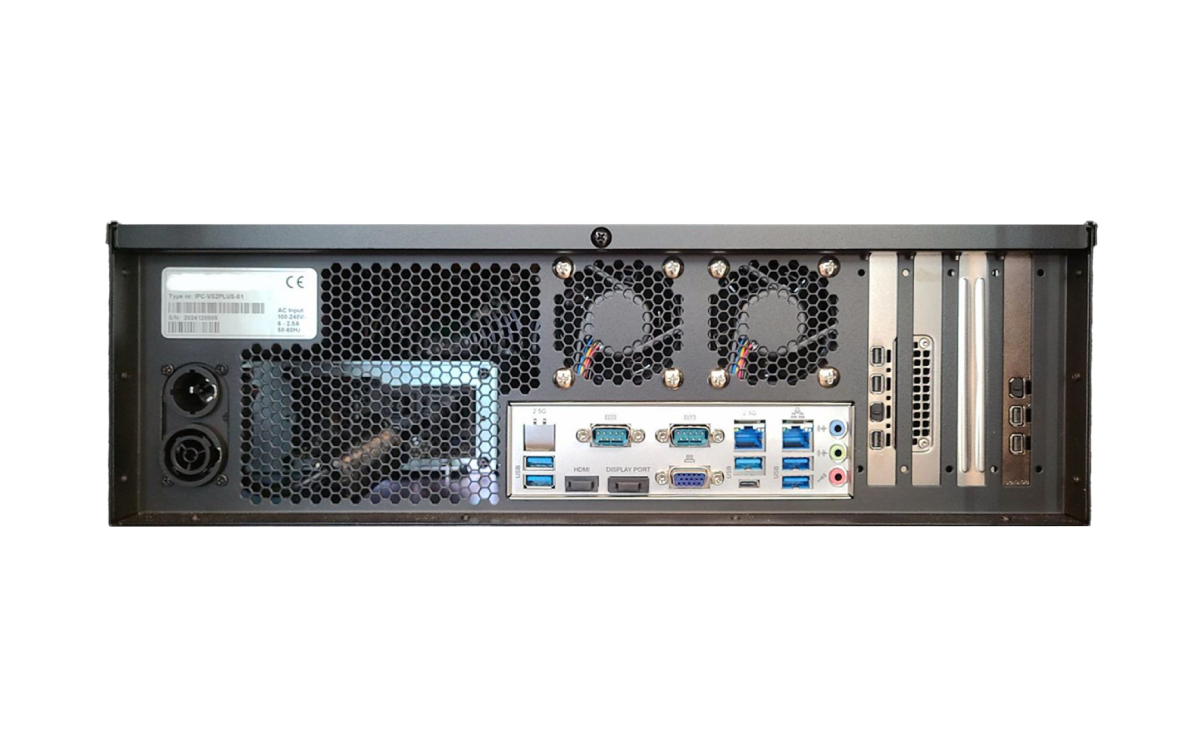

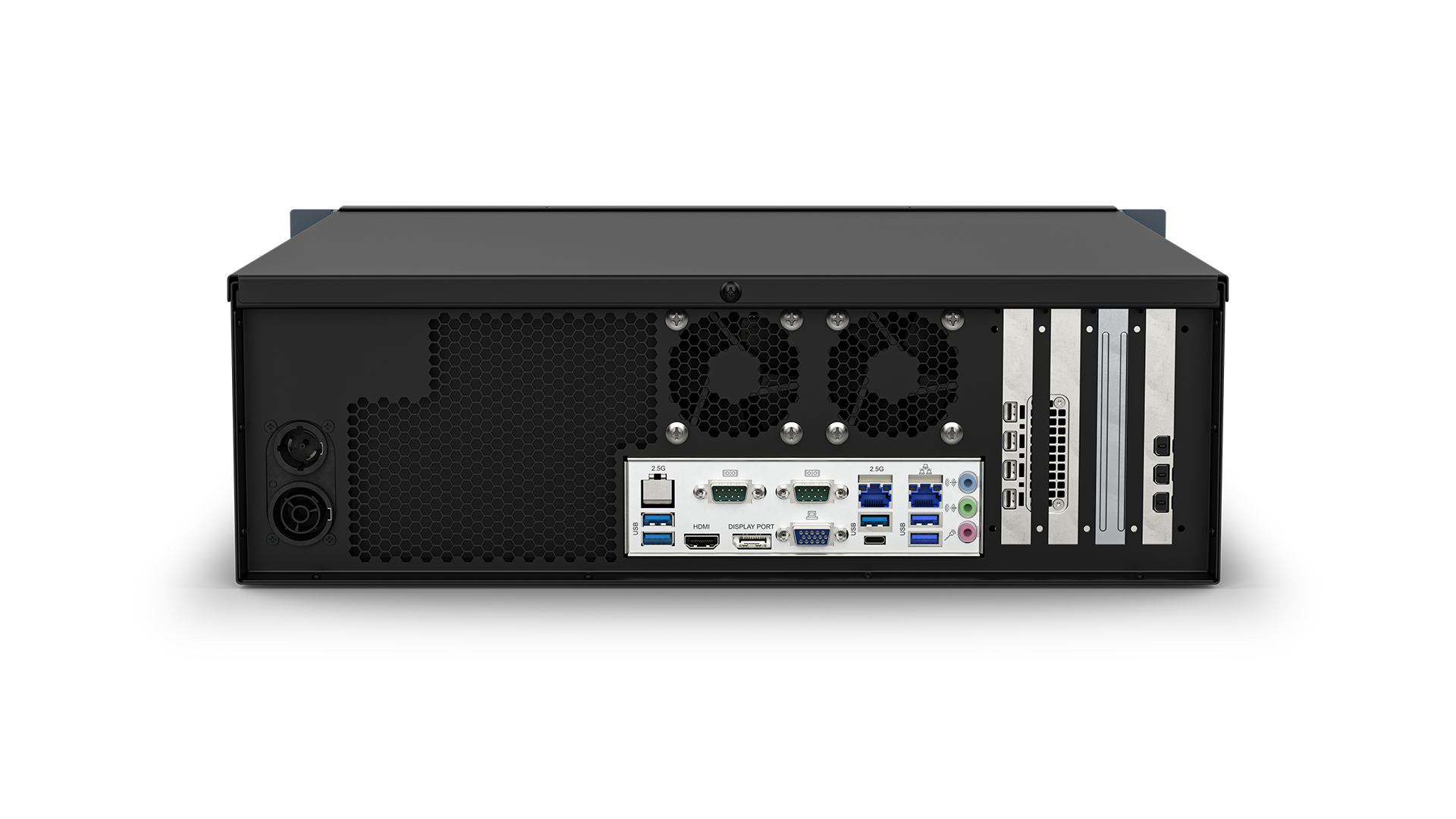

  • Interface Output: 2 x MDP – 4K
  • Media Output: 2 x MDP – 4K
  • Ethernet Output: 2 x RJ45 2.5 Gigabit Lan
  • Front USBs: 2 – USB3
  • Rear USBs: 5 x USB 3.0 A Type , 1 x USB-C
  • Inputs: 2x/4x SDI (Optional) 2x/4x HDMI (Optional)

Software Specifications:

  • Operating System: Windows 11 Pro
  • MediaMaster Software: Pro
  • Playback Layers: 48
  • Surfaces: Multiple
  • Outputs: Multiple
  • Presets: 4096
  • LED Mapper: Yes
  • King Net Mapper: Yes
  • Video Mapper: Yes
  • Soft Edge / Geometric Correction: Yes
  • NDI®5 : Yes
  • CITP/MSEX: Yes
  • GDTF Personality Export: Yes
  • Factory System Restore: Yes

Control:

  • Art-Net: Yes
  • sACN: Yes
  • Stand Alone Keyboard Control: Yes
  • DMX Control: Optional MagicDMX
  • Front Panel Control: Yes

Boxed Weights and Dimensions:

  • Width: 600mm (23.62 inches)
  • Depth: 550mm (21.65 inches)
  • Height: 300mm (11.81 inches)
  • Weight: 14.2 kg (31.30 lb)

Unit Weights and Dimensions:

  • Width: 430mm (5.63 inches)
  • Depth: 405mm (7.68 inches)
  • Height: 135mm (1.69 inches) – 3U High
  • Weight: 10.4 kg (22.92 lb)

MediaMaster Software

The legendary Arkaos MediaMaster is now ChamSys MediaMaster 25 — a major upgrade to MediaMaster 6, rebuilt for today’s production demands.
